Oscillating Hot Wire CNC Foam Cutting Machine for 2D Shapes

Oscillating Hot Wire CNC Foam Cutting Machine for 2D Shapes

Item No.: CO31314840

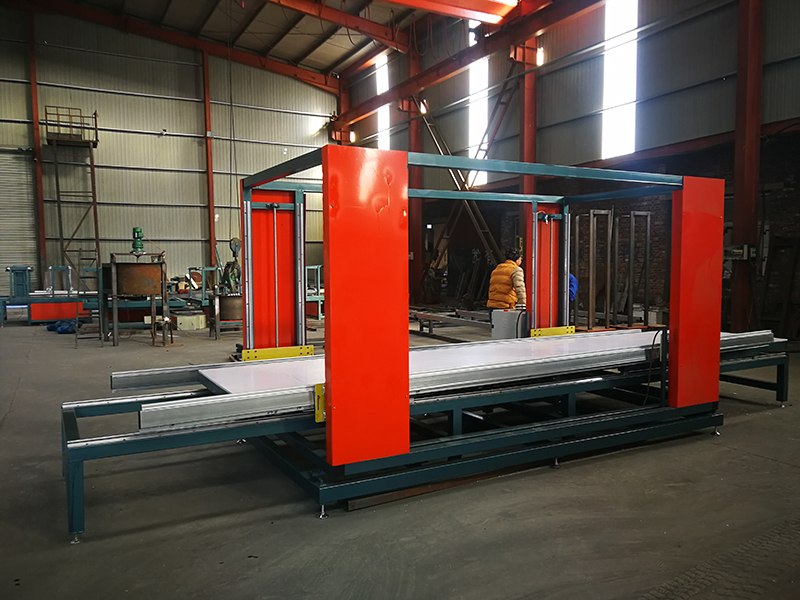

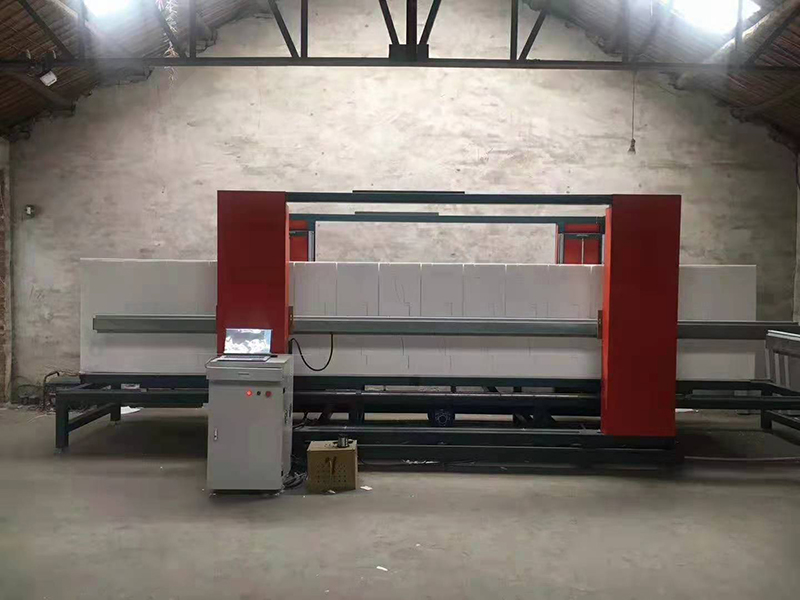

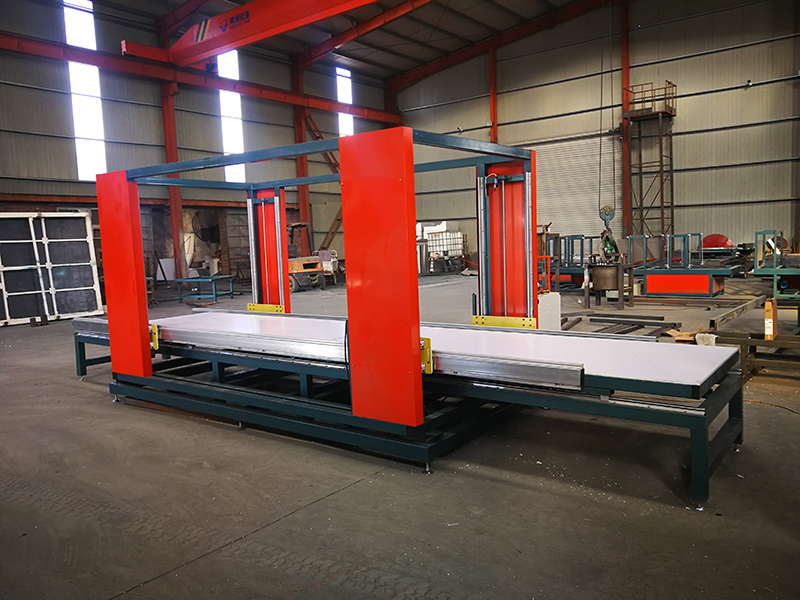

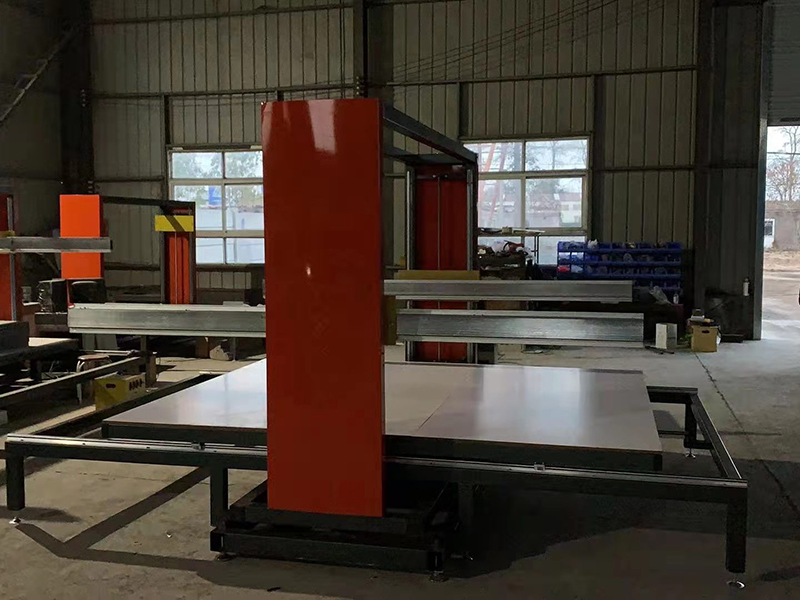

The oscillating hot wire CNC foam cutting machine is with multiple hot wires for cutting EPS block into foam molding for exterior building walls. It is two axis for CNC 2D cutting work. CNC control is Arduino.Software is Devfoam which we will pre pay it and install it in Lenovo laptop.

The CNC foam cutting machine is heavy duty with square steel tube frame. The machine is available with 3m or 6m cutting length and different cutting width.

Model No.	Wire Oscillation	Cutting Length (mm)	Wire Length (mm)	Cutting Height (mm)	Wire Qty	Wire Travel Distance(mm)
						X axis	Y axis
CNCPSQ300	Yes	3000	1400	1350	24	1800	1300
			2200
			2600
CNCPSQ600		6000	1400	1350	24	1800	1300
CNCPSQ300	No	3000	1400	1350	24	1800	1300
			2200
			2600
CNCPSQ600		6000	1400	1350	24	1800	1300
			2200
			2600

The oscillation function is optional with our machine and the oscillation can be variable on control box.

With hot wire oscillation,the CNC foam cutting machine can increase cutting capacity by 1/3.And it can perform good to cut the not-dried EPS block with smooth cutting surface.
